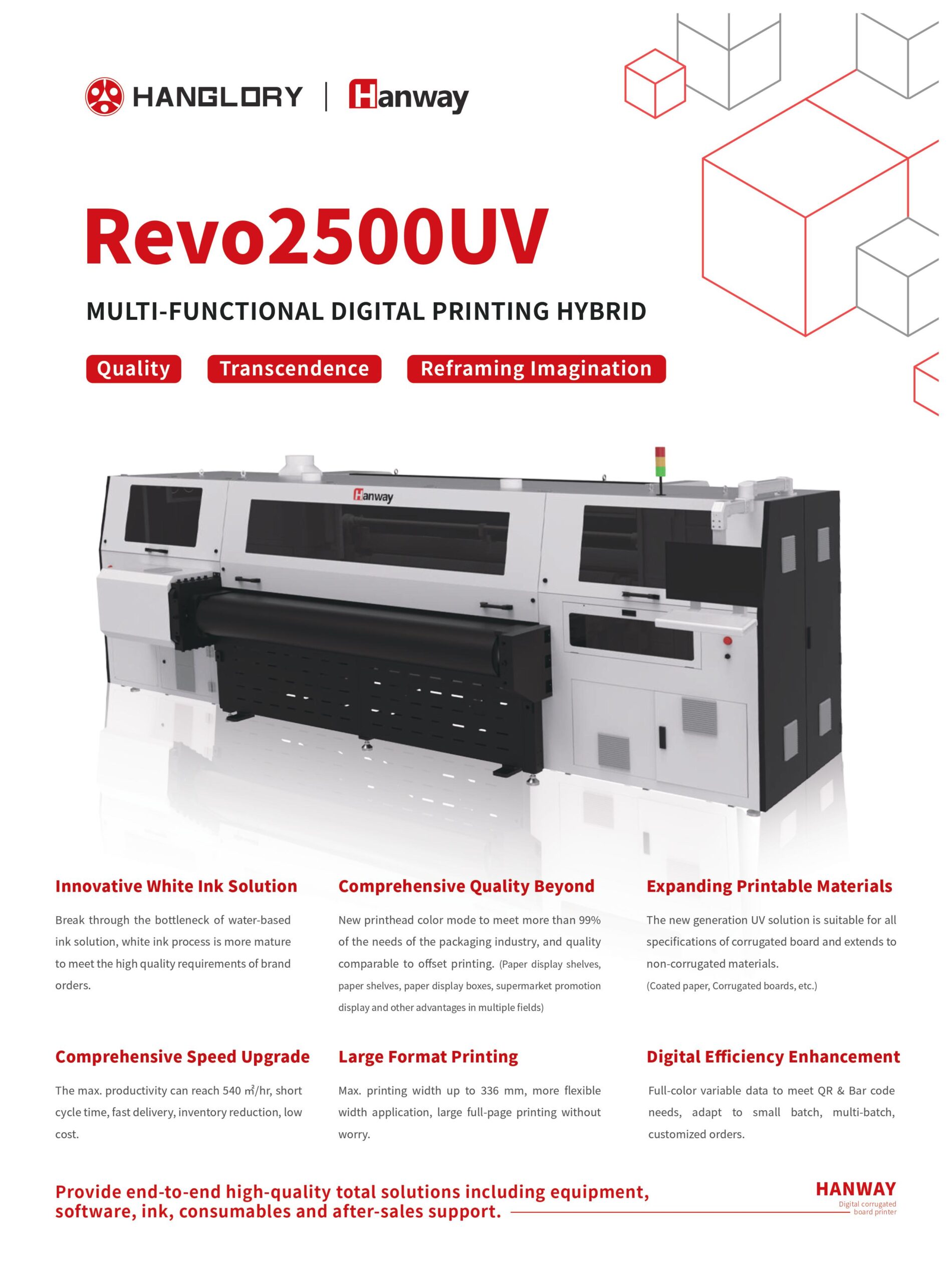

Revo 2500UV

Multi‑functional UV inkjet printing hybrid with up to 540 m²/hr production on corrugated and non‑corrugated substrates.

The Hanway Revo 2500UV is a multi‑functional digital inkjet printing hybrid designed to bring UV‑curable printing capability to corrugated packaging and related display applications. As part of the scanning digital inkjet lineup on the official product catalog, it delivers a next‑generation UV solution with a productivity of up to 540 m²/hr, enabling high‑quality direct printing on corrugated board as well as non‑corrugated materials for applications such as cardboard display shelves, promotional boxes, and point‑of‑sale signage.

Built to extend digital inkjet competitiveness beyond water‑based systems, the Revo 2500UV supports both CMYK and optional CMYK+White colour modes, enabling vivid, high‑contrast graphics even on brown kraft board — a traditional challenge for non‑UV systems. Its versatile media handling accommodates corrugated substrates of typical industrial formats, while the UV curing process ensures rapid ink solidification and durable results suitable for retail and high‑visibility packaging environments.

Characterisitics

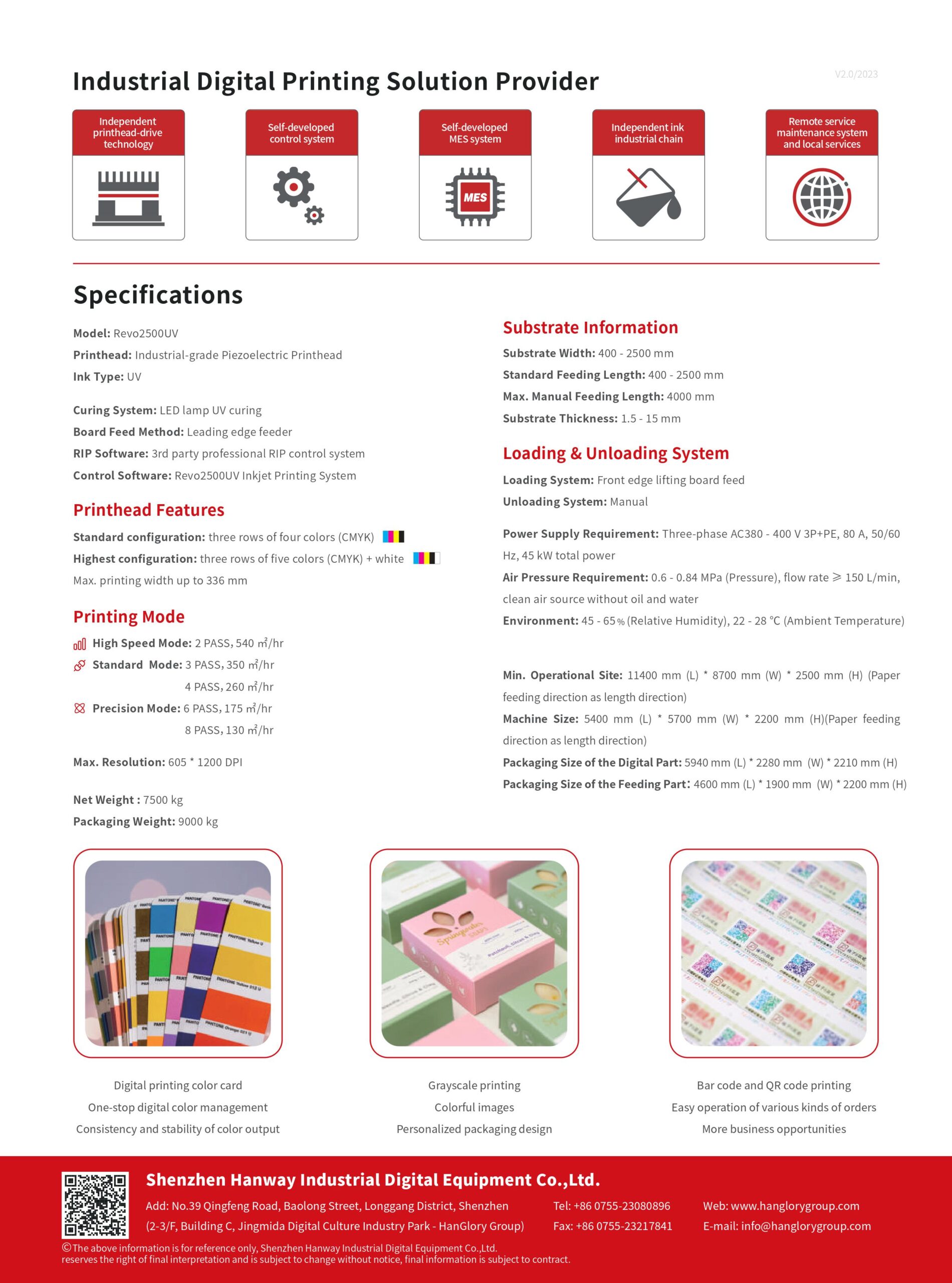

PrintheadIndustrial grade Piezoelectric Printhead Ink Type UV Curing SystemLED lamp UV curing Board Feed MethodLeading edge feeder RIP Software3rd party professional RIP control system Control Software Revo2500UV Inkjet Printing System Printhead Standard configurationthree rows of four colors CMYK Printhead Highest configurationthree rows of five colors (CMYK) + white Max printing width up to 336 mm High Printing Speed Mode2 PASS, 540 m²/hr Max. Resolution: 600 x 1200 DPI Net Weight7500 kg Substrate Width400-2500 mm Standard Feeding Length400-2500 mm Max. Manual Feeding Length4000 mm Substrate Thickness1.5-15 mm Power Supply RequirementThree-phase AC380-400V 3P+PT, 80 A, 50/60 Hz, 45 kW total power Air Pressure Requirement0.6-0.81 MPa (Pressure), flow rate 130 L/min, clean air source without oil and water Environment45-65% (Relative Humidity), 22-25 °C (Ambient Temperature) Min. Operational Site11400 mm (L) * 8700 mm (W) * 2500 mm (H) (Paper feeding direction as length direction) Machine Size5400 mm (L) * 5700 mm (W) * 2200 mm (H) (Paper feeding direction as length direction)
