HighJet 2500D

High‑productivity multi‑pass scanning corrugated printer with up to 700 m²/hour output and flexible inline workflow options.

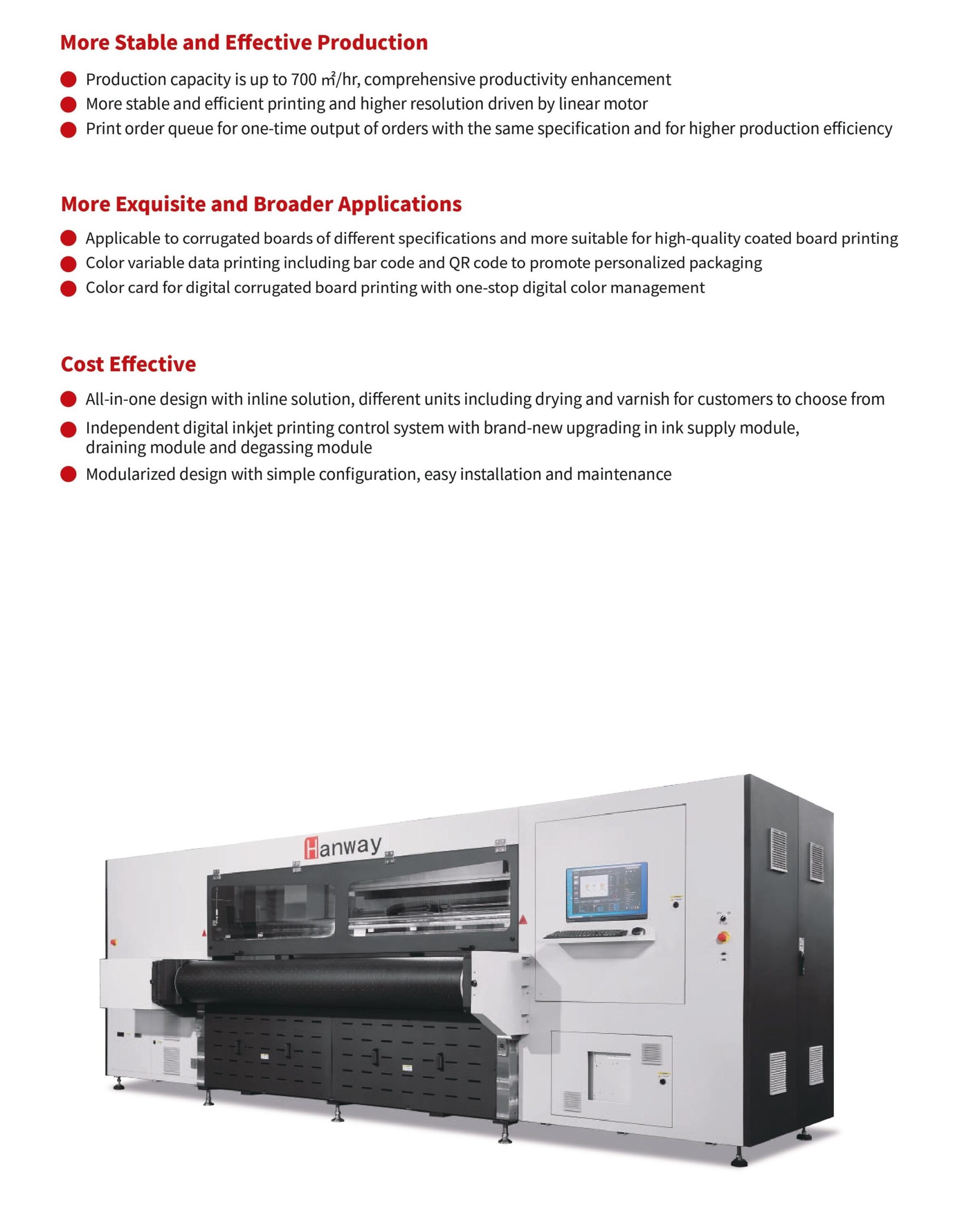

The Hanway HighJet 2500D is a multi‑pass digital scanning corrugated printer designed for efficient, high‑quality production across a wide range of corrugated board types. Using up to eight industrial piezoelectric Kyocera printheads and water‑based ink technology, it delivers vibrant CMYK colour printing directly on brown kraft, white, and coated substrates without the need for plates or lengthy setup. In high‑speed draft modes, the system supports a maximum productivity of up to 700 m²/hour, enabling converters to tackle short‑ to medium‑run orders with consistent output and excellent image detail.

To support streamlined workflows, the HighJet 2500D can be configured with optional inline process modules such as hot‑air drying and varnishing, which help reduce manual intervention and improve production continuity. Its robust scanning architecture and modular options make it suitable for dynamic packaging environments where flexibility and reliable throughput are key, while still maintaining strong colour fidelity and media handling across varied corrugated production tasks.

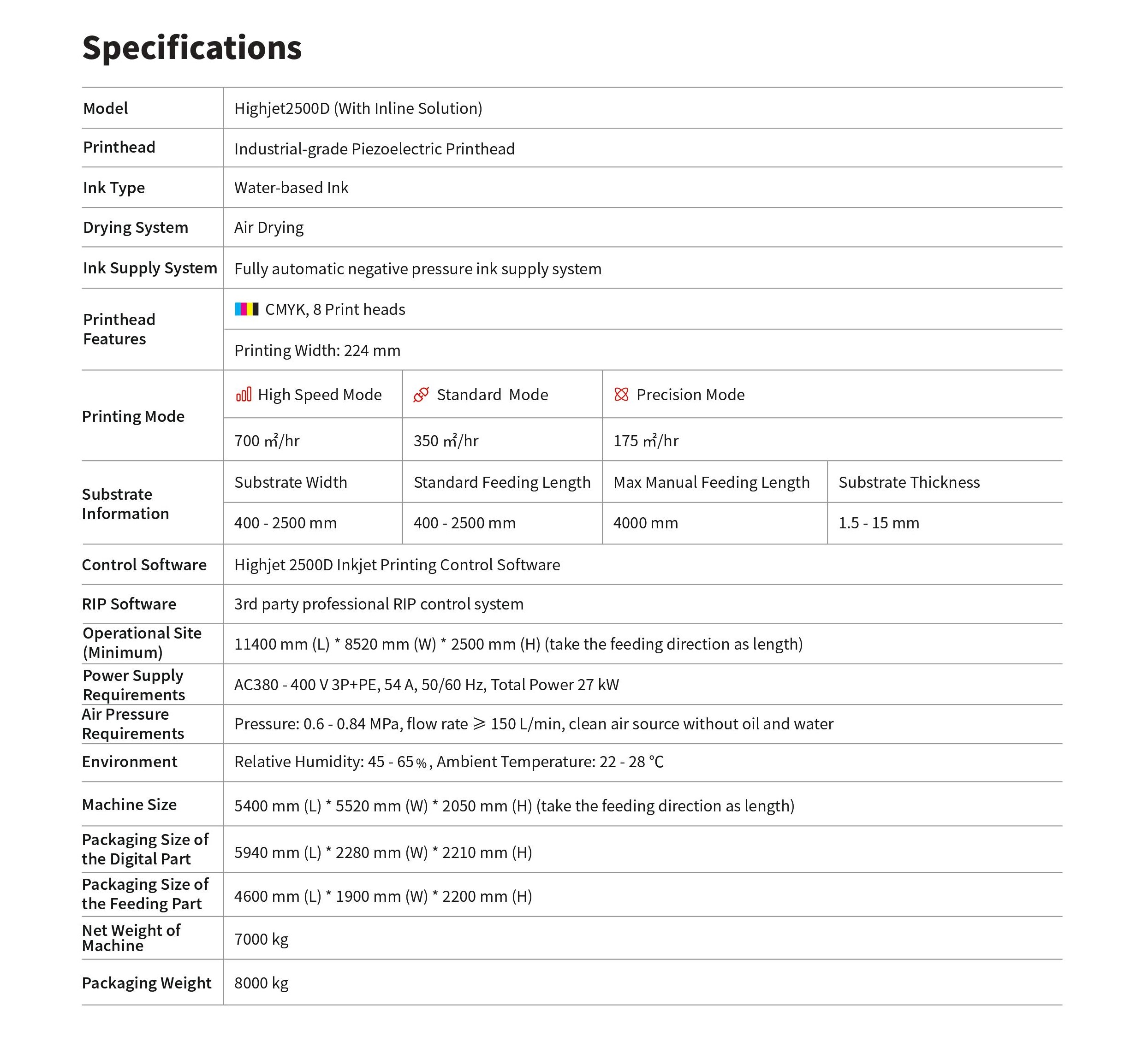

Characteristics
PrintheadIndustrial-grade Piezoelectric Printhead Ink TypeWater-based Ink Drying SystemAir Drying Ink Supply SystemFully automatic negative pressure ink supply system Printhead FeaturesCMYK, 8 Print heads Printing Width224 mm Printing SpeedHigh Speed - 700 m²/hr Standard - 350 m²/hr Precision - 175 m²/hr Substrate Width400 - 2500 mm Standard Feeding Length400 - 2500 mm Max Manual Feeding Length4000 mm Substrate Thickness1.5 - 15 mm Control SoftwareHighjet 2500D Inkjet Printing Control Software RIP Software3rd party professional RIP control system Operational Site (Minimum)11400 mm (L) * 8520 mm (W) * 2500 mm (H) (take the feeding direction as length) Power Supply RequirementsAC380-400 V 3P+PE, 54 A, 50/60 Hz, Total Power 27 kW Air Pressure RequirementsPressure: 0.6 - 0.84 MPa, flow rate 150 L/min, clean air source without oil and water EnvironmentRelative Humidity: 45 - 65%, Ambient Temperature: 22 - 28 °C Machine Size5400 mm (L) * 5520 mm (W) * 2050 mm (H) (take the feeding direction as length) Net Weight of Machine7000 kg
