Hanway Glory 160X HD

High-definition single-pass corrugated printer delivering offset-quality 1200 × 1200 dpi printing at up to 76 m/min production speeds.

The Hanway Glory 160X HD is a high-definition single-pass corrugated digital inkjet printer designed to meet the demands of premium packaging production. Leveraging 1200 × 1200 dpi inkjet technology, it produces offset-like print quality at industrial speeds, with a standard production rate of 76 m/min and a maximum mechanical speed up to 150 m/min. The printer supports a wide variety of corrugated materials — including coated, brown, and white boards — and features optional digital priming to enhance ink adhesion and image consistency across challenging substrates.

Built for continuous, high-throughput operation, the 160X HD integrates advanced single-pass printhead arrays and precision media handling to deliver vibrant full-colour graphics, sharp text, and detailed imaging suitable for sophisticated brand packaging. Its fast job changeover and modular options for drying and additional process units make it adaptable for varied production demands, from short personalized runs to larger continuous workflows.

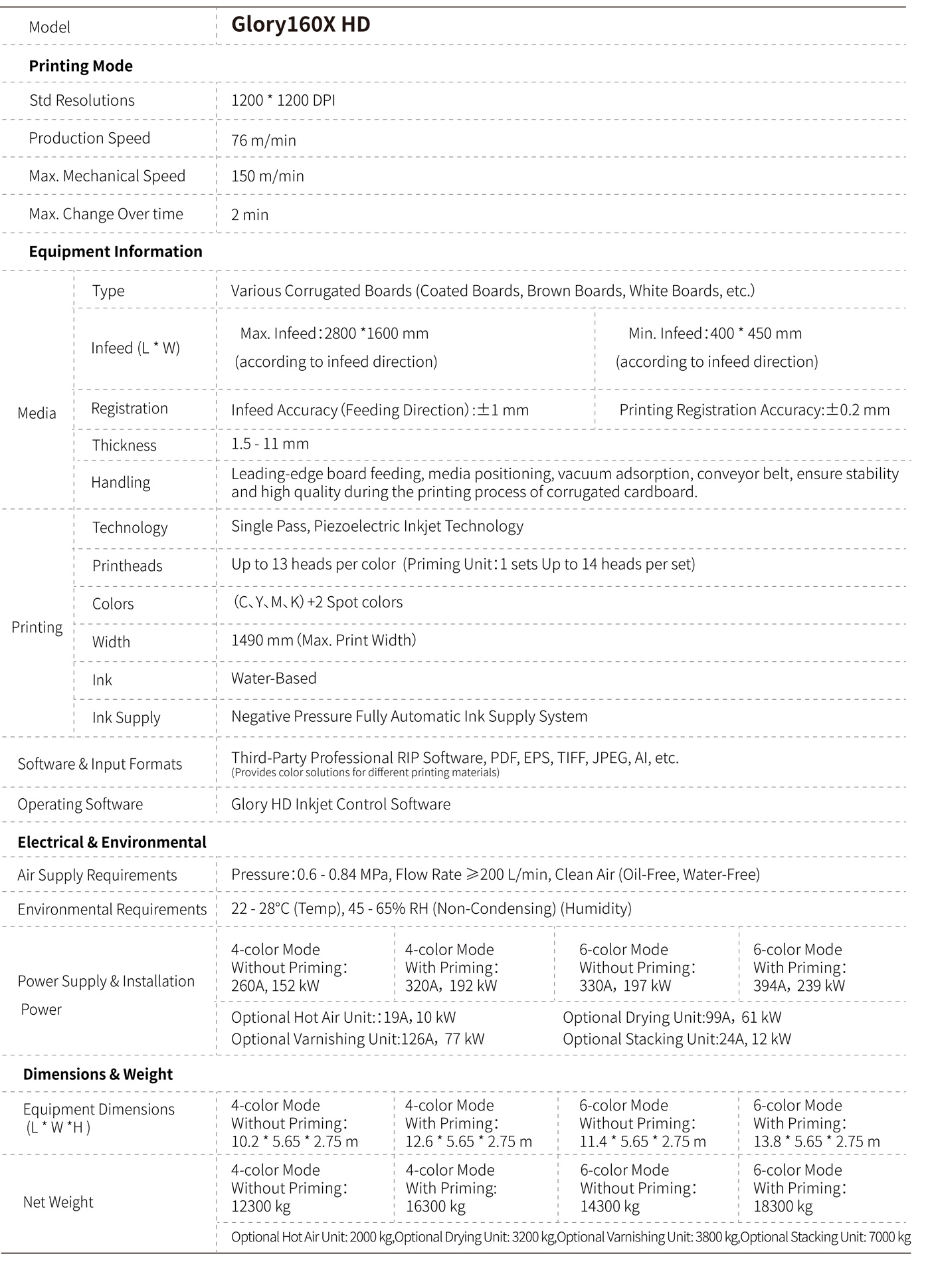

Characteristics
Std Resolutions1200 * 1200 DPI Production Speed76 m/min Max. Mechanical Speed150 m/min Max. Change Over time2 min Media TypeVarious Corrugated Boards (Coated Boards, Brown Boards, White Boards, etc.) Max. Infeed (L*W)2800 * 1600 mm Min. Infeed (L*W)400 * 450 mm Infeed Accuracy (Feeding Direction)±1 mm Printing Registration Accuracy±0.2 mm Media Thickness1.5 - 11 mm HandlingLeading-edge board feeding, media positioning, vacuum adsorption, conveyor belt, ensure stability and high quality during the printing process of corrugated cardboard. TechnologySingle Pass, Piezoelectric Inkjet Technology PrintheadsUp to 13 heads per color (Priming Unit: 1 set, Up to 14 heads per set) Colors(C, Y, M, K) +2 Spot colors Max. Print Width1490 mm Ink TypeWater-Based Ink SupplyNegative Pressure Fully Automatic Ink Supply System Third-Party Professional RIP SoftwarePDF, EPS, TIFF, JPEG, AI, etc. Operating SoftwareGlory HD Inkjet Control Software Air Supply RequirementsPressure: 0.6-0.84 MPa, Flow Rate ≥ 200 L/min, Clean Air (Oil-Free, Water-Free) Environmental Requirements22-28°C (Temp), 45-65% RH (Non-Condensing) (Humidity)
