Hanway Glory 1604 / 2504

Industrial single-pass corrugated digital presses delivering high-speed production and sharp graphics from medium (1604) to large format (2504).

The Hanway Glory 1604 is a single-pass corrugated digital inkjet press engineered for high-speed packaging production. It prints directly on coated, white, and kraft corrugated boards using industrial single-pass technology with a maximum linear speed of 150 m/min and a print resolution up to 600 × 1200 dpi, enabling efficient, high-quality output without the need for plates or long setup times. The machine supports CMYK color, a broad range of board types, and automated handling to streamline flexible mass production while maintaining print consistency and visual impact.

The Hanway Glory 2504 extends single-pass performance into the large-format corrugated segment, offering a wide maximum print width up to around 2160 mm and high productivity of roughly 26 000 m²/hour in continuous operation. Designed for industrial-scale workflows, it delivers durable, high-quality imaging at resolutions up to 600 × 600 dpi across a broad range of corrugated substrates, while integrating smoothly into end-to-end production with supporting downstream systems such as slotting and stacking. The 2504’s robust industrial design and high throughput make it a strong solution for converters targeting large-format packaging demands with fast job turnarounds.

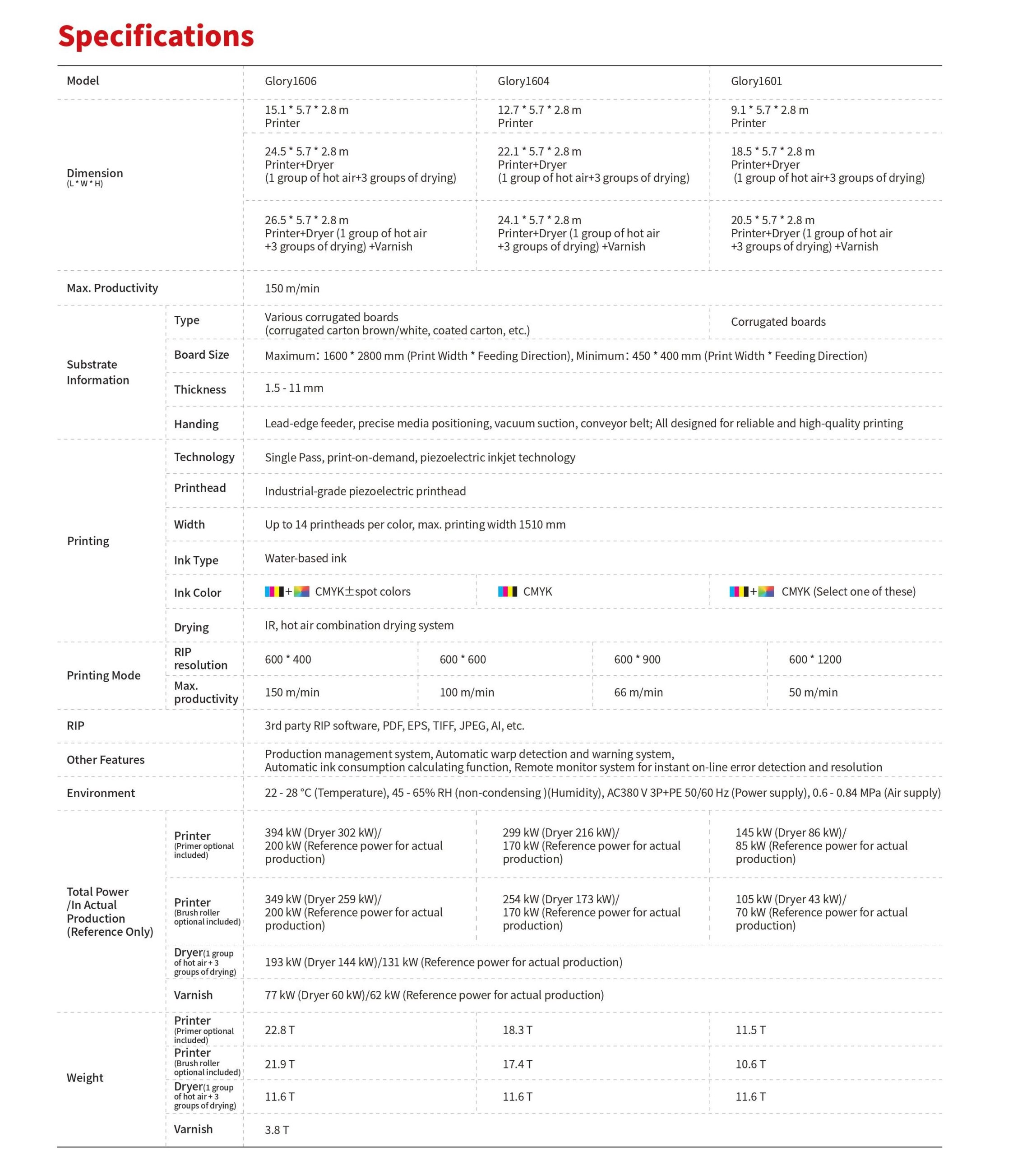

Characteristics Glory 1604
TechnologySingle Pass, print-on-demand, piezoelectric inkjet technology PrintheadIndustrial-grade piezoelectric printhead Printing WidthUp to 14 printheads per color, max. printing width 1510 mm RIP resolutionup to 600 * 1200 DPI Max. productivity 50 m/min Ink TypeWater-based ink Ink ColorCMYK DryingIR, hot air combination drying system Max. Productivity150 m/min Media TypeVarious corrugated boards (corrugated carton brown/white, coated carton, etc.) Board Size Maximum1600 * 2800 mm (Print Width * Feeding Direction) Board Size Minimum450 * 400 mm (Print Width * Feeding Direction) Media Thickness1.5-11 mm Media HandlingLead edge feeder, precise media positioning, vacuum suction, conveyor belt Environment22-28 °C (Temperature), 45-65% RH (non-condensing) (Humidity), AC380V 3P+PE 50/60 Hz (Power supply), 0.6-0.84 MPa (Air supply) Other FeaturesProduction management system, Automatic warp detection and warning system, Automatic ink consumption calculating function, Remote monitor system for instant on-line error detection and resolution Printer Dimension12.7 * 5.7 * 2.8 m

Characteristics Glory 2504
Printing TechnologySingle Pass, Piezoelectric Inkjet Technology PrintheadsUp to 20 heads per color Colors1~4 colors (C, Y, M, K) Max. Print Width2160 mm Ink TypeWater-Based Ink SupplyNegative Pressure Fully Automatic Ink Supply System Max. Mechanical Speed150 m/min (Standard Version) / 180 m/min (Optional Version) Production Speed75-150 m/min (Standard Version) / 100-180 m/min (Optional Version) Media TypeVarious Corrugated Boards (Brown Boards, White Boards, etc.) Max. Infeed (L*W)2000 * 2500 mm (according to infeed direction) Min. Infeed (L*W)400 * 450 mm (according to infeed direction) Max. Media Width2500 mm Infeed Accuracy (Feeding Direction)±1 mm Printing Registration Accuracy±0.2 mm Media Thickness1.5-15 mm Media HandlingLeading-edge board feeding, media positioning, vacuum adsorption, conveyor belt, ensure stability and high quality during the printing process of corrugated cardboard Input FormatsPDF, EPS, TIFF, JPEG, AI, etc. (Provides color solutions for different Third-Party Professional printing materials) Operating SoftwareGlory 2504 Inkjet Control Software Other FunctionsWarping Automatic Detection System, Ink Cost Estimation Function, Remote Diagnosis and Maintenance, Production Management System Air Supply RequirementsPressure: 0.6-0.84 MPa, Flow Rate ≥ 200 L/min, Clean Air (Oil-Free, Water-Free) Environmental Requirements22-28°C (Temp), 45-65% RH (Non-Condensing) (Humidity) Power SupplyThree Phase AC 380V-400V, 3P+PE, 140A, 50/60 Hz, 69 kW Digital Unit Dimensions (L*W*H)6800 * 5750 * 2570 mm
