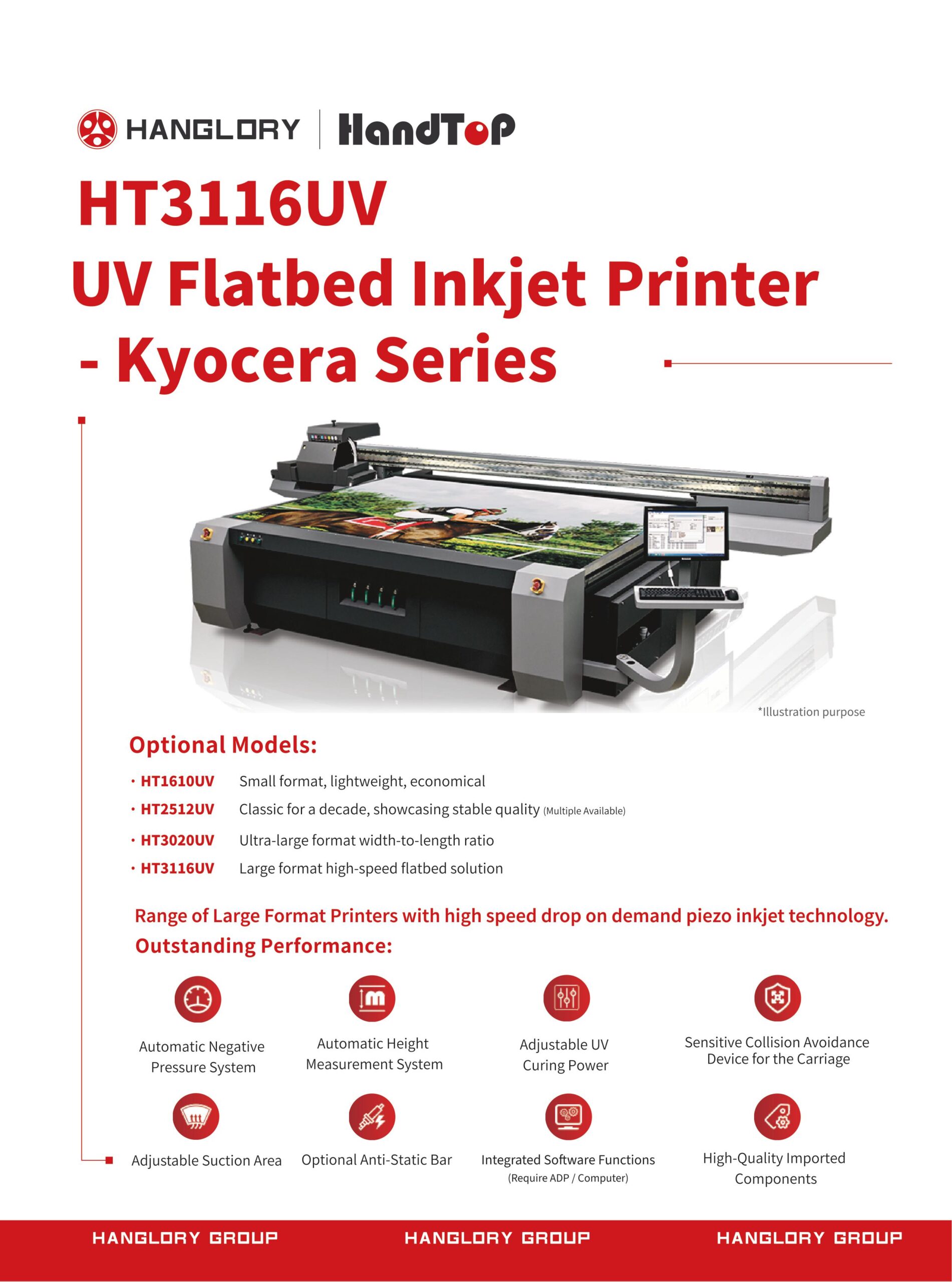

HandTop HT3116UV

High-productivity large-format UV flatbed printer designed for fast, reliable, and high-quality rigid media printing.

HandTop HT3116UV is a large-format UV flatbed printer offering up to 1200 × 1200 DPI maximum resolution and print speeds of up to approximately 120 m²/h, making it ideal for fast, high-quality production of signage, displays, and decorative graphics on rigid and flexible materials. Its 3.1 × 1.6 m print area and LED-UV curing deliver vivid, durable results, with support for white ink and varnish to enhance visual impact.

Designed for reliability and ease of use, the HT3116UV suits both established print shops and growing businesses. It provides consistent output across a wide range of substrates without requiring overly technical operation, helping users expand their large-format UV printing capabilities efficiently.

Characteristics

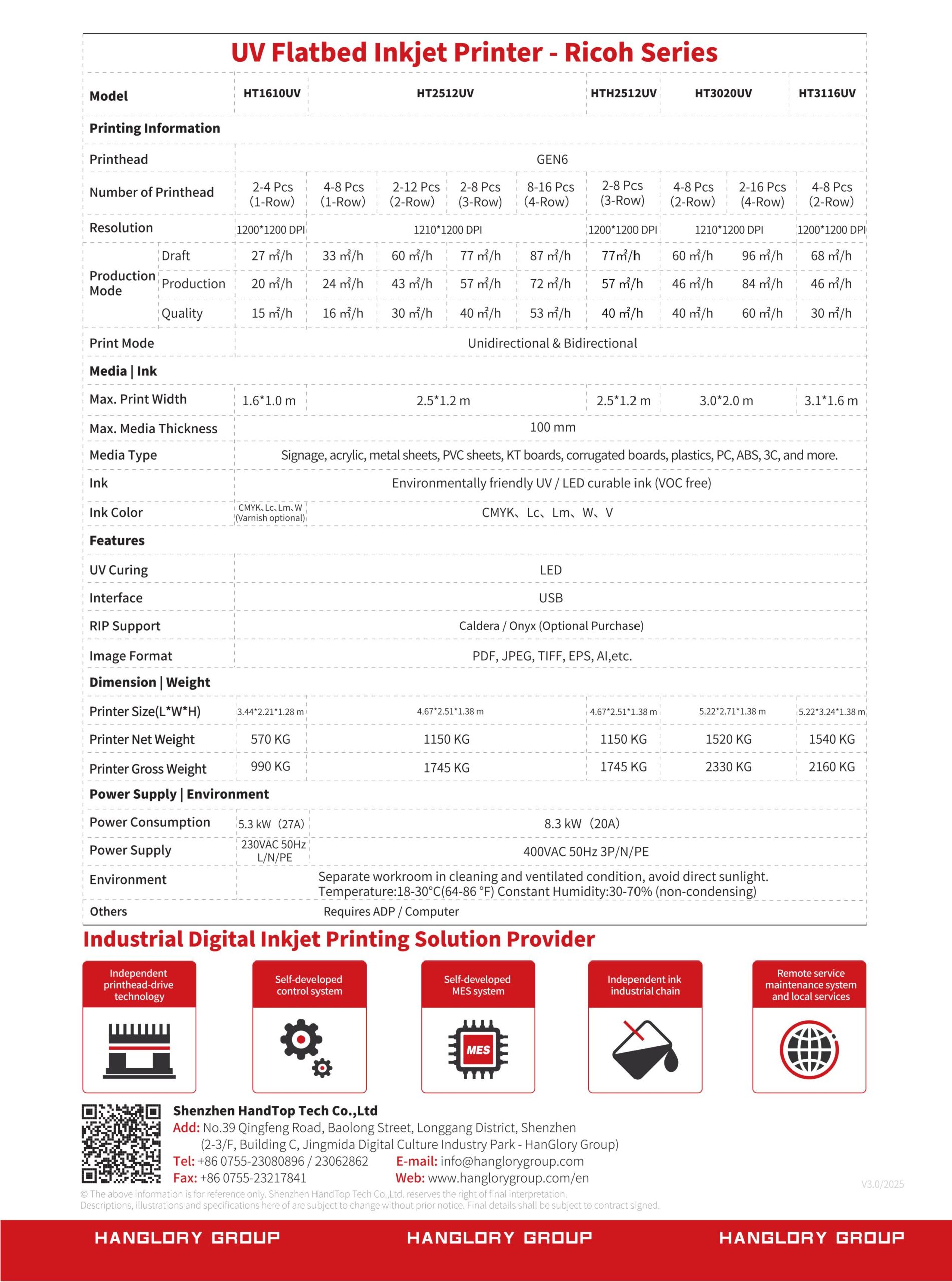

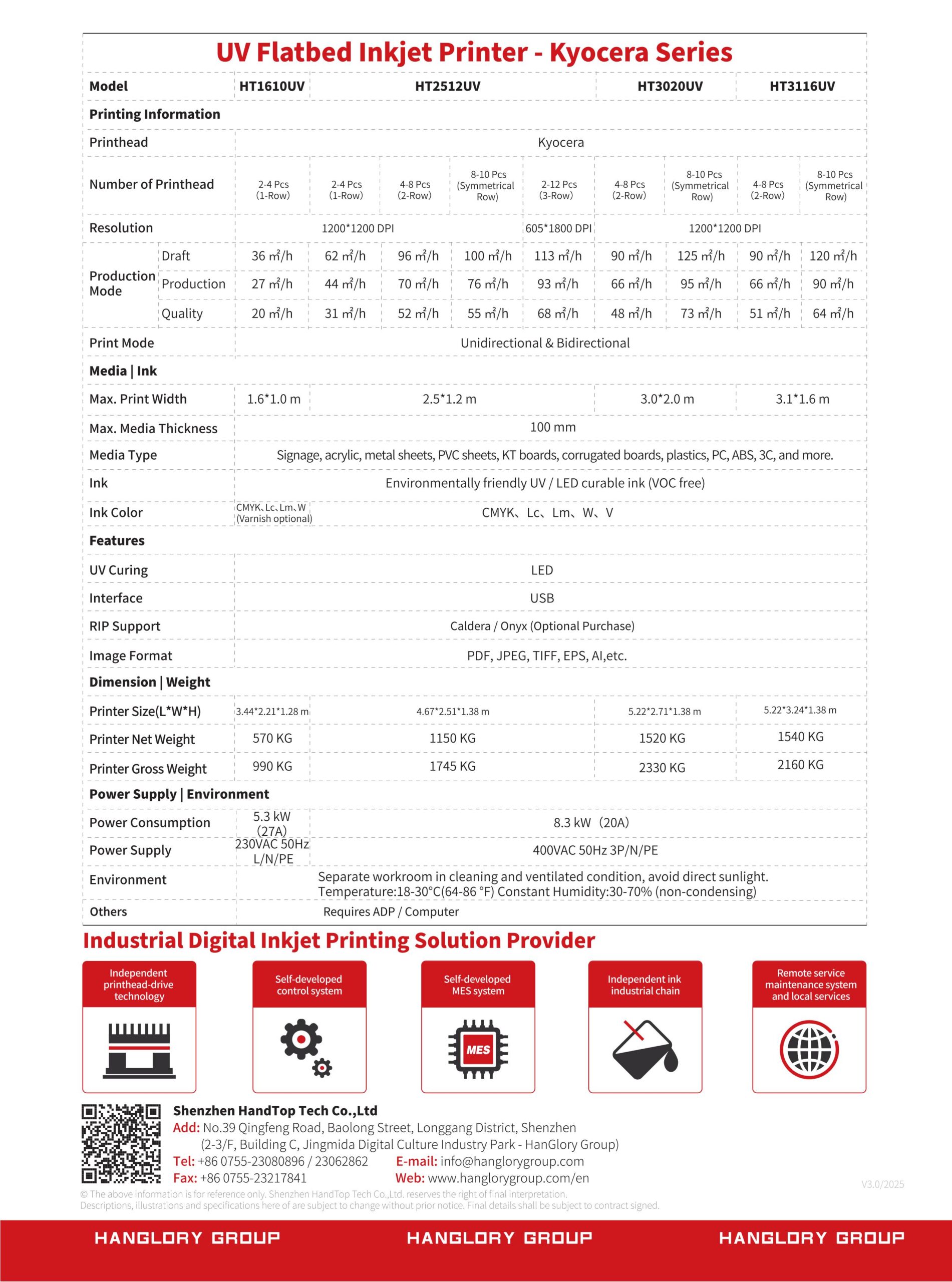

PrintheadKyocera & GEN6 Resolution1200*1200 DPI Max Media Size3.1 m × 1.6 m Max Media Thickness100mm Print Speed (Ricoh solution)Up to 68 ㎡/h (Draft) 46 ㎡/h (Production) 30 ㎡/h (High Quality) Print Speed (Kyocera solution)Up to 120 ㎡/h (Draft) 90 ㎡/h (Production) 64 ㎡/h (High Quality) Curing SystemLED curing (adjustable power) Color ConfigurationCMYK, Lc, Lm, White, Varnish optional InkEnvironmentally friendly UV / LED curable ink (VOC free) Media SupportWide variety of rigid materials Power Supply400VAC 50Hz 3P/N/PE RIP SoftwareCaldera
