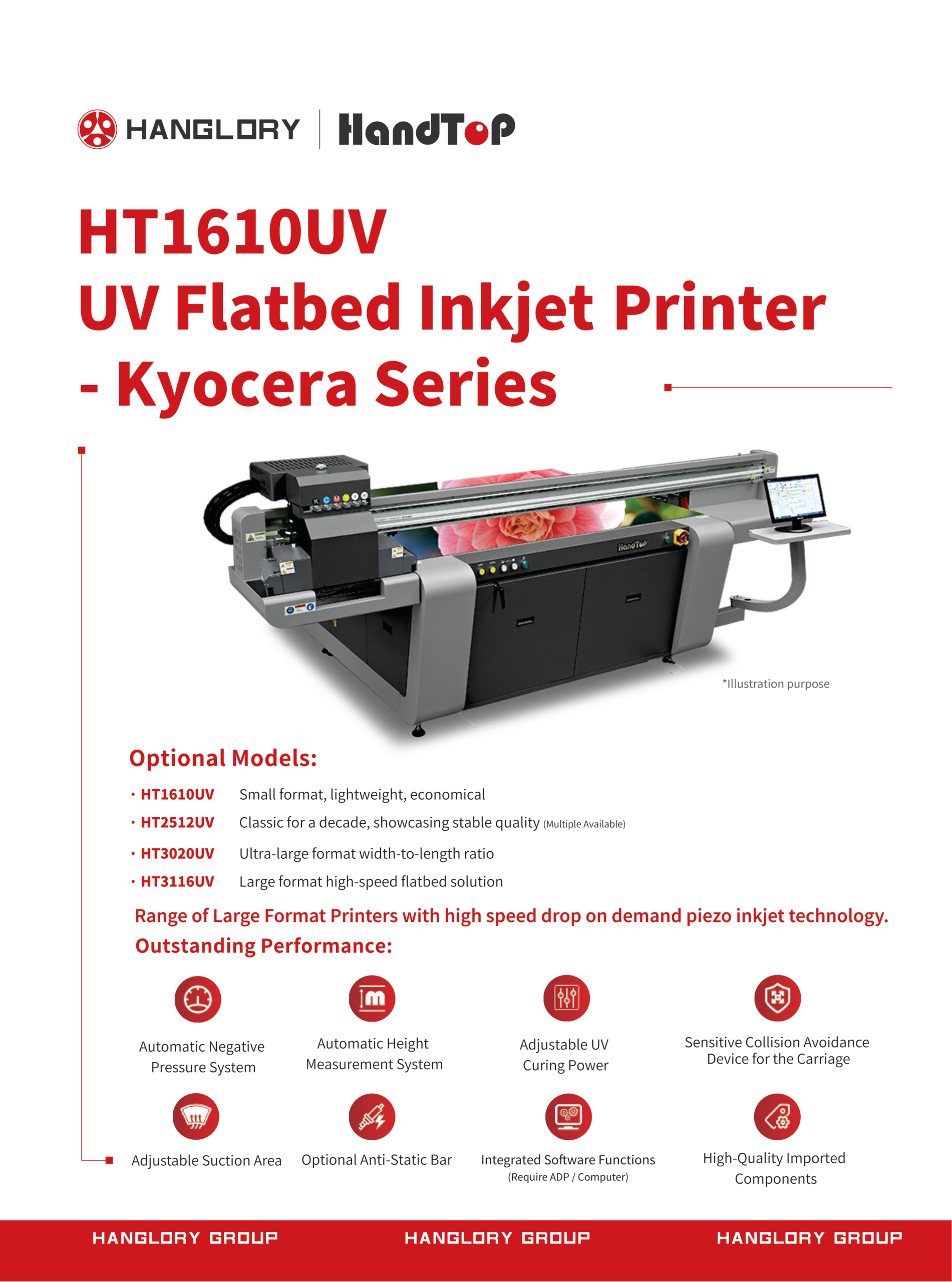

HandTop HT1610UV

High-productivity compact UV flatbed printer for efficient, high-quality rigid media printing.

High-productivity compact UV flatbed printer offering up to 1200 × 1200 DPI resolution and print speeds around 46 m²/h (with upgraded 2-row heads), ideal for efficient, high-quality printing on rigid and flat materials. It supports a versatile small-format work area (1.6 × 1.0 m) with LED-UV curing for vibrant, durable results on signage, displays, and decorative applications.

Designed as an efficient entry-level industrial UV printer, the HandTop 1610UV balances reliable performance with straightforward operation, making it well-suited for smaller print shops and businesses looking to expand their rigid media printing capabilities without excessive complexity.

Characteristics

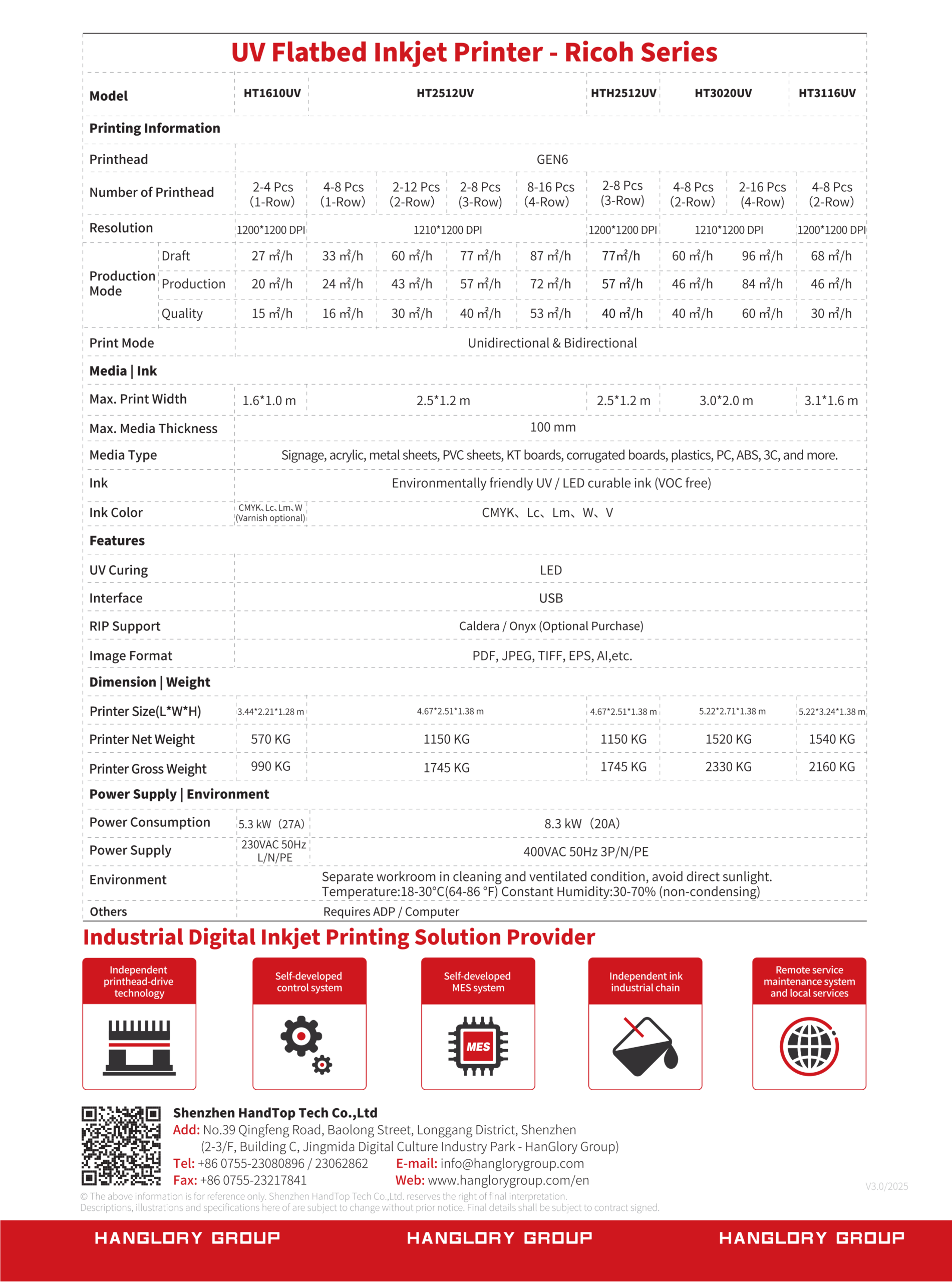

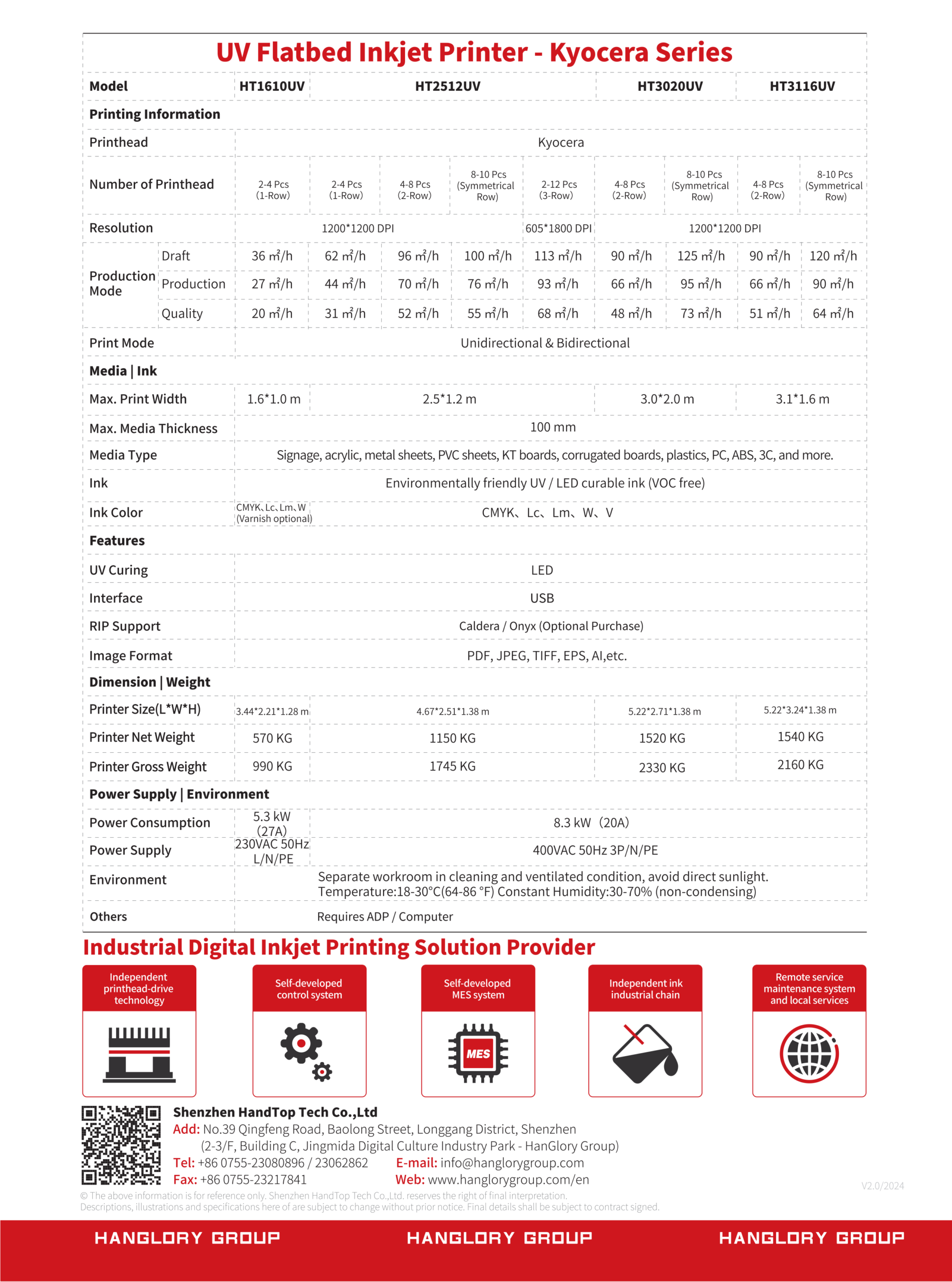

PrintheadKyocera & GEN6 Resolution1200*1200 DPI Max Media Size1.6 m × 1.0 m Max Media Thickness100mm Print Speed (Ricoh solution)Up to 27 ㎡/h (Draft) 20 ㎡/h (Production) 15 ㎡/h (High Quality) Print Speed (Kyocera solution)Up to 36 ㎡/h (Draft) 27 ㎡/h (Production) 20 ㎡/h (High Quality) Curing SystemLED Color ConfigurationCMYK, Lc, Lm, White, Varnish optional InkEnvironmentally friendly UV / LED curable ink (VOC free) Media SupportWide variety of rigid materials Power Supply230VAC 50Hz L/N/PE RIP SoftwareCaldera
